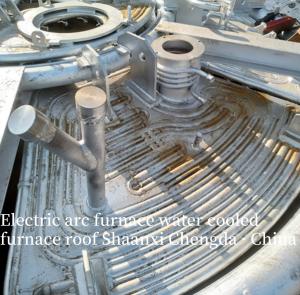

Electric arc furnace water cooled furnace roof

There are many types of furnace cover structures of electric arc furnaces, Can be selected according to the different power of electric arc furnaces.

1.Brick type furnace cover

2. Box type water cooling furnace cover

3. Tube type water cooling furnace cover

4. Atomizing furnace cover
Among them, the brick type furnace cover is suitable for ordinary power arc furnace.
Box type water cooled furnace covers are suitable for high power arc furnaces
The tube type water cooled furnace cover is mainly used in ultra-high power electric arc furnace, and the atomizing furnace cover has a wide application range and is basically not limited by power.
In the design of ultra-high power DC electric arc furnace, the tube type water-cooled furnace cover with good cooling effect and the most widely used is selected.

Water cooling furnace cover structure diagram:

Electric Arc Furnace Roof

Electric Arc Furnace Water Cooled Roof

Advanced Cooling System Water Cooled Roof
