LF furnace 20-150t Ladle refining furnace LF furnace
Main uses: ladle refining furnace can be used for refining molten steel of primary refining furnace (electric arc furnace, open hearth furnace, converter), which is an important metallurgical equipment to meet continuous casting and continuous rolling.
Application:
Ladle Refining Furnace is used to refining the molten steel from the primary melting furnace (electric arc furnace, induction furnace, converter and etc.), meanwhile have the function of adjusting molten steel temperature, and be a
buffer of the whole process. It is described to be the soul of the best production line ( primary melting furnace + LF+ CCM). It is widely used in the refining of kinds of steel grade, such as Ball bearing steel, alloy structural steel, tool steel, spring steel, carbon steel and etc.
Equipment features: equipment with atmospheric arc heating, vacuum degassing, blowing argon stirring, blowing oxygen feed wire, atmospheric pressure or vacuum feeding, temperature measurement, sampling, TV camera, frequency observation and other functions.
Equipment composition:
1. Ladle and ladle car;
2. Heating device (electrode control mode: manual control or microcomputer automatic control. Energy-saving short mesh and conductive cross arm are used);
3. Vacuum and detection system;
4. Hydraulic and control valve system:
5. Argon, oxygen, compressed air and cooling water systems;
6. Electrical control system (PLC control and CRT image imitation display)
7. High voltage and strong current system;
8. Large current lines.

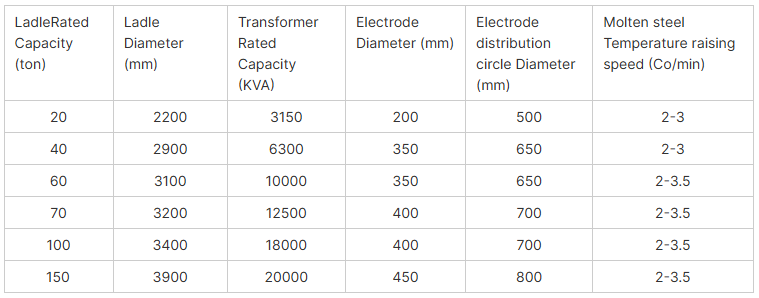

Specification:
Our Services:
1. Customize according to your requirements and provide you with an effective quotation.
2. We have professional engineers to design the plan for you.
3. Our team will provide professional advice and help for your whole project.
4. Our factory is always ready to welcome field visits. 5. Ensure high quality after-sales service.
